Part No. SMK1065F Package TO-220F Configuration Single Polarity N-ch VDSS[V 650 ID[A 10 PD[W] RDS(ON)[Ω] Max Qg[nC] Ciss[pF] VGS(th)[V] Min. at ID=250uA Max. Features Built-in Zener Select File 点击下载 如需技术支持或有Sample需...

Part No. Package TO-220F Configuration Single Polarity N-ch VDSS[V 650 ID[A 9.0 PD[W] 40 RDS(ON)[Ω] Max 0.85 Qg[nC] 35 Ciss[pF] 2040 VGS(th)[V] Min. 2 at ID=250uA Max. 4 Features Advance DMOS Technology Select File 点击下载 如需技术...

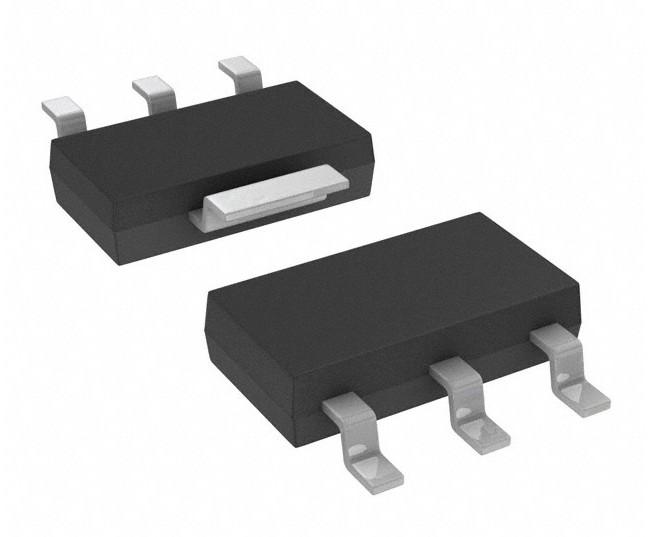

Part No. SMN01Z30Q Package SOT-223 Configuration Single Polarity N-ch VDSS[V 300 ID[A 1.3 PD[W] 2.1 RDS(ON)[Ω] Max 8.0 Qg[nC] 2.9 Ciss[pF] 101 VGS(th)[V] Min. 1.5 at ID=250uA Max. 2.5 Features Built-in Zener Select File 点 击下载 如需...

Part No. SMK0990CI Package TO-252 Configuration Single Polarity N-ch VDSS[V 900 ID[A 9.0 PD[W] 130 RDS(ON)[Ω] Max 1.4 Qg[nC] 52 Ciss[pF] 2100 VGS(th)[V] Min. 3 at ID=250uA Max. 5 Features Advance DMOS Technology Select File 点击下载 如...

Part No. SMK1360CI Package TO-252 Configuration Single Polarity N-ch VDSS[V 600 ID[A 13 PD[W] 200 RDS(ON)[Ω] Max 0.65 Qg[nC] 41 Ciss[pF] 2162 VGS(th)[V] Min. 2 at ID=250uA Max. 4 Features Advance DMOS Technology Select File 点击下载 如...

Part No. SMN01L20Q Package SOT223 Configuration Single Polarity N-ch VDSS[V 200 ID[A 0.85 PD[W] 2 RDS(ON)[Ω] Max 1.35 Qg[nC] 4.0 Ciss[pF] 224 VGS(th)[V] Min. 1 at ID=250uA Max. 2.25 Features Login Level Power MOSFET Select File 点击下载...

Part No. SUN24A50CI Package TO-247 Configuration Single Polarity N-ch VDSS[V 500 ID[A 24 PD[W] 290 RDS(ON)[Ω] Max 0.2 Qg[nC] 90 Ciss[pF] 5990 VGS(th)[V] Min. 2 at ID=250uA Max. 4 Features Advance DMOS Technology Select File 点击下载 如...

Part No. SMK2050CI Package TO-247 Configuration Single Polarity N-ch VDSS[V 500 ID[A 20 PD[W] 150 RDS(ON)[Ω] Max 0.26 Qg[nC] 65 Ciss[pF] 3120 VGS(th)[V] Min. 2 at ID=250uA Max. 4 Features Advance DMOS Technology Select File 点击下载 如...

Part No. SMN04L20D Package TO-252 Configuration Single Polarity N-ch VDSS[V 200 ID[A 3.2 PD[W] 33 RDS(ON)[Ω] Max 1.35 Qg[nC] 4.0 Ciss[pF] 224 VGS(th)[V] Min. 1 at ID=250uA Max. 2.25 Features Advance DMOS Technology Select File 点击下载...

Part No. SMN630LD Package TO-252 Configuration Single Polarity N-ch VDSS[V 200 ID[A 9.0 PD[W] 45 RDS(ON)[Ω] Max 0.4 Qg[nC] 12 Ciss[pF] 575 VGS(th)[V] Min. 1 at ID=250uA Max. 2.5 Features Advance DMOS Technology Select File 点击下载 如需...
